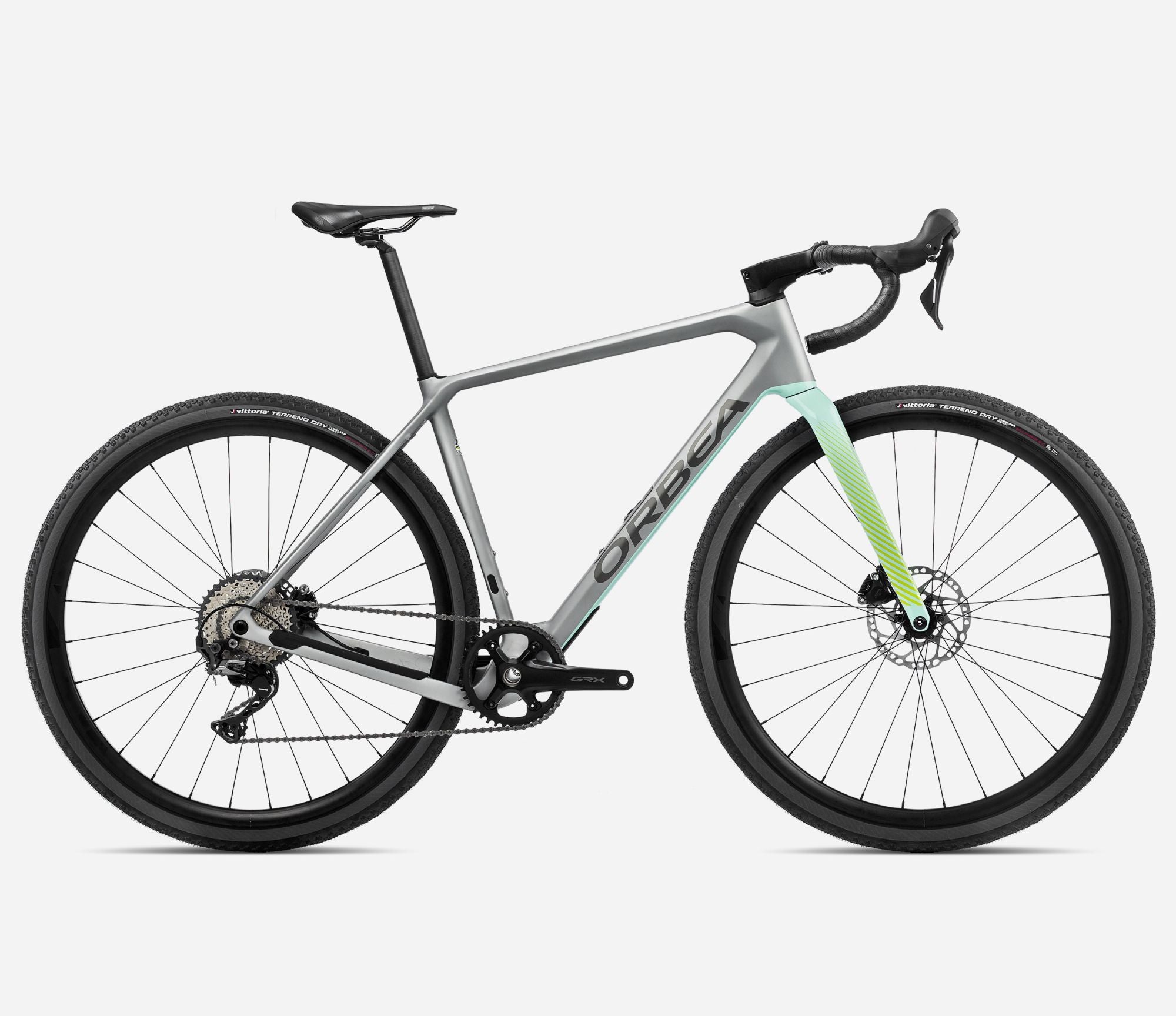

ORBEA | Terra M30TEAM Gravel Bike Shimano GRX 11S - Stone Silver / Ice Green 2023

ORBEA | Terra M30TEAM Gravel Bike Shimano GRX 11S - Stone Silver / Ice Green 2023

Regular price Rs 165,000.00 Rs 0.00 Unit price per
Tax included.

ORBEA | Terra M30TEAM Gravel Bike Shimano GRX 11S - Stone Silver / Ice Green 2023

Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort, but above all with a thirst for fun. Designed from the ground up for gravel, Orbea Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

The Terra M is the sportiest option within the family, fast and light for those back roads or gravel path adventures. The carbon frame offers the perfect blend of weight, comfort and strength, while Orbea's LOCKR system takes care of storing those essentials. It offers a storage area inside the downtube, hidden behind the water bottle cage, where there is space for the tube, pump or CO2 cartridge, as well as a selection of tools. Everything is easy to get and securely stored with space for a snack, or your car keys.

Orbea use the most technologically advanced carbon construction available to make the most sophisticated frame possible. A complex and painstaking process with results you will appreciate in the saddle. Orbea Monocoque Race (OMR) carbon frames add high modulus and high strength fibers to a standard layup to improve stiffness-to-weight ratios. Bladder molding with EPS forms and PU headtube and bottom bracket inserts stop wrinkling and unconformities in critical zones, allowing less carbon to be used while maintaining strength.

MAIN FEATURES:

  • Terra delivers a balanced ride, with precise handling and maximum control.
  • Fast and light adventures.
  • Carbon OMR frame and carbon fork.
  • Shimano GRX1x11-speed drivetrain.
  • Shimano GRX RX400 hydraulic disc brakes.

FEATURES:

Frame Carbon: Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142 mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box, Tire Clearance: 45C (or 650Bx50 mm)
Fork Carbon: Orbea Terra ICR, full carbon, 1-1/8" - 1.5" tappered head tube compatible, Thru Axle 12x100 mm, thread M12x2 P1
Shifters Shimano GRX ST-RX600, 1x11-speed
Front Derailleur None
Rear Derailleur Shimano GRX RD-RX810, 11-speed
Cassette Shimano 105 CS-R7000, 11-40T
Chain Shimano CN-HG601
Crankset FSA Gossamer Pro Direct Mount AGX, 46/30T
Brakes Shimano GRX BR-RX400, Hydr. Disc Brake
Wheelset Alloy, Tubeless, 12x100/12x142 mm, 700c, 21c
Tires Vittoria Terreno Dry, CX-Gravel G2.0 TNT, 700x38c
Handlebar OC Gravel GR30, Reach 80 mm, Drop 125 mm
Bar Tape Orbea Anti-Slippery/Shock Proof
Stem OC Road Performance RP21, -6º
Headset FSA 1-1/2" Integrated Aluminium Cup
Saddle Prologo Akero AGX, STN, Size 155 mm
Seatpost Carbon, 27.2 mm, Setback 20 mm
Weight ---
Color AE - Stone Silver (Matt) - Ice Green (Gloss)
Reference N762

GEOMETRIES:

Frame Size XS S M L XL XXL
Seat Tube (mm) 405 438 471 504 537 570
Top Tube (mm) 526 539 558 570 590 603
Chain Stays (mm) 420 420 420 420 420 420
Head Tube Length (mm) 110 131 152 178 199 220
Head Tube Angle (°) 70 70.5 71 71 71.5 72
Seat Tube Angle (°) 74 74 73.5 73.5 73 73
Wheelbase (mm) 1009 1019 1029 1044 1053 1062
Stack (mm) 526 548 570 592 614 636
Reach (mm) 375 382 389 395 402 409
